General Description                                                                                                                                                                                                            ET7301B Datasheet

The ET7301B is a programmable USB Type-Control IC. It supports the USB Type-C connector application with Configuration Channel (CC) control logic detection and indication functions. This products support a flexible hardware solution to configure DFP/UFP/DRP connection. It can connect to a controller through I2C-bus interface. ET7301B performs USB Type-C detection including attach, detach and orientation. It setup VBUS threshold detection automatically as well as the various charging current levels. ET7301B provide the software flexibility for multiple platform support.

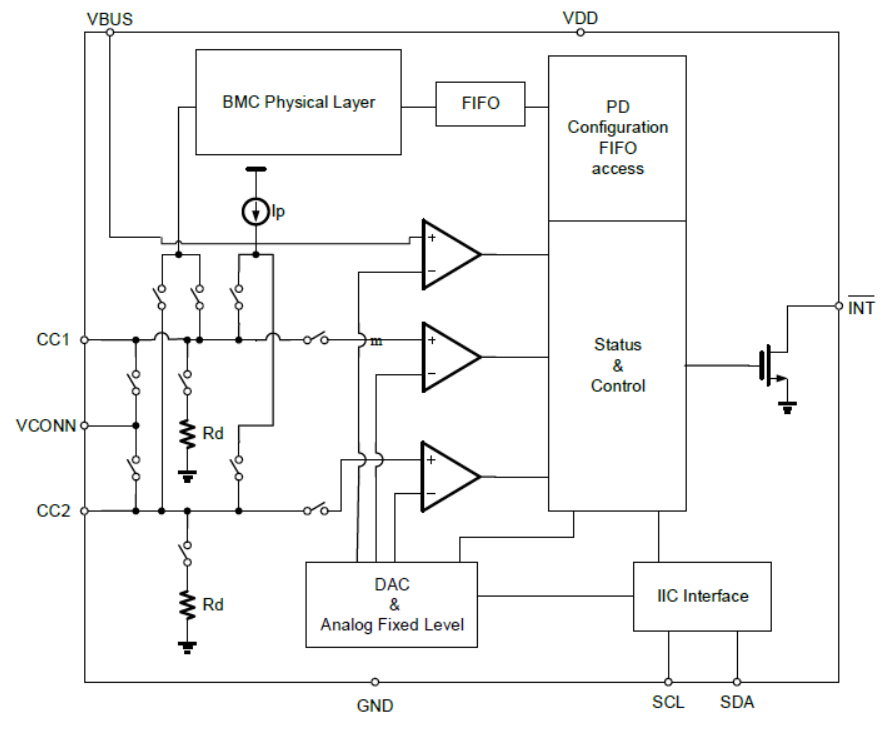

The ET7301B integrates the physical layer of the USB BMC PD (Power Delivery) protocol to allow up to 100W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification.

Features

    ● Dual-Role Functionality with Autonomous DRP Toggle

    ● Software configurable either as a dedicated host, dedicated device, or dual role. Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel

    ● Full Type-C Specification 1.1 support. Configuration Channel (CC)

        – Role Detection and Configuration: DFP/UFP/DRP

        – Type-C USB Port Detection of Attach and Orientation

        – Type-C Current Mode、Audio Adapter Accessory Mode、Debug Accessory Mode

        – Active Cable Detection

    ● USB Power Delivery(PD) Specification 2.0, Version 1.1 Support

        – Automatic GoodCRC Packet Response

        – Automatic retries of sending a packet if a GoodCRC is not received

        – Automatic soft reset packet sent with retries if needed、Automatic Hard Reset Ordered Set Sent

    ● Dead Battery Support (SNKMode Support when No Power Applied)

    ● High Speed I2C Interface

    ● Supply Voltage:2.8V to 5.5V

    ● Low Standby Supply Current: IDD =25uA (Typical)

    ● Package:WLCSP9(ET7301B),QFN14(ET7301BY)

Application

    ● Host, Device, Dual Role Port Applications

    ● Smart phones,Tablets and Notebooks

    ● USB Peripheral
